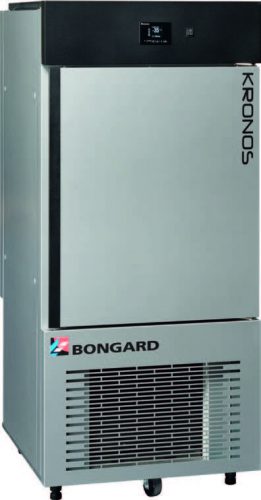

FERMENTATION / CONSERVATION – KRONOS-P

Quick Cooling Unit and Reach-In Blast Freezer

The KRONOS-P quick cooling unit and reach-in blast freezer is designed to rapidly chill or freeze products, preparing them for preservation. Blast freezing fresh products from room temperature to approximately -35°C (-18°C core temperature) ensures optimal preservation of appearance, volume, weight, and flavor while minimizing the risk of frost and dehydration.

In pin type sensor mode, the electronic control autonomously manages the decrease in temperature and the duration required to blast freeze the products. In timed mode, users set the desired cycle length, and the electronic control handles the temperature regulation. KRONOS-P efficiently reaches core temperatures of -18°C and maintains this temperature for 24 hours before automatically switching to conservation mode.

The KRONOS-P blast freezer offers quick, efficient, and reliable cooling and freezing solutions, making it an essential tool for professional kitchens and food preservation operations.

kronos-product bongard

Technical characteristics

MODEL : KRONOS-P Quick Cooling Unit and Reach-In Blast Freezer

CAPACITIES :

    • KRONOS-P 46.5: 5 trays, 400 x 600 mm
    • KRONOS-P 46.9: 9 trays, 400 x 600 mm
    • KRONOS-P 46.15: 15 trays, 400 x 600 mm

FEATURES :

  • Electronic Control: Allows for precise regulation of the cooling process.
  • Handle on the Left: Ergonomic design for ease of use.
  • Ventilation Fans: Automatically stop when the door is open to conserve energy.
  • 230 V Power Supply: Standard electrical compatibility.
  • Manual Defrosting: Achieved through ventilation with the door open.
  • Cycle Modes: Choose between timed mode and pin type sensor mode for flexibility.
  • Acoustic Signal: Alerts user at the end of the cycle.

Chamber:

  • Panels: 80 mm isothermal hot-galvanised 7/10 steel panels with interior 6/10 304 stainless steel coating and exterior 120 micron PVC food-grade film.
  • Insulation: Injected polyurethane foam with a density of 42 kg/m³.
  • Assembly: Panels connected using eccentric hook cam locks.

Door:

  • Magnetic Seal: Ensures a tight close with a spring pivot return system.
  • Heating Cord: Integrated into the door frame for easy access.

Refrigeration System:

  • Unit Location: Hermetic refrigeration unit built at the bottom.
  • Refrigerant: Uses R452 A refrigerant.
  • Evaporator: Stainless steel evaporator sheet panels.

Interior Layout:

  • Tray Spacing: Standard 75 mm space between rails for flexible configuration.

IMPORTANT NOTES :

  • Drainage: Outlet is located at the back of the unit.
  • Installation: Must be installed in a well-ventilated area with a temperature range of 13°C to 40°C.

ADVANTAGES :

  • Rapid Temperature Drop: Ensures fast and efficient cooling.
  • Special Cold Ventilation Fans: Optimized for blast freezing.
  • Intuitive Electronic Control: High-intensity cycle for quick results.
  • Stainless Steel Interior: Features a diamond point floor for easy cleaning.
  • Easy Maintenance: One-piece tray slides are removable by hand for straightforward cleaning.
  • Reversible Door: Flexible installation options.
  • Mobility: Equipped with wheels and adjustable-height feet for easy repositioning.
