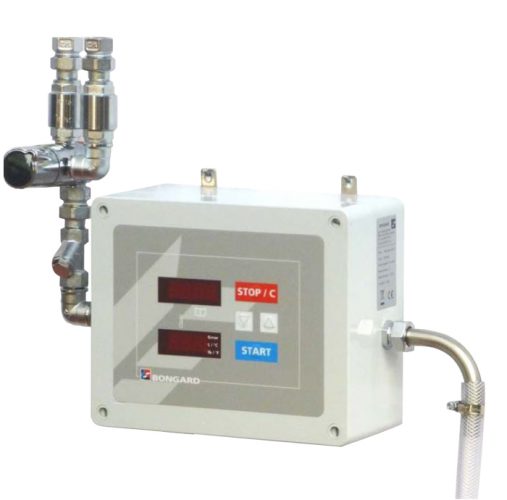

MIXING – DOX 30 / DOMIX 30 by BONGARD

Experience the precision and efficiency of DOX and DOMIX Water Meter & Mixer Range.

Designed to deliver the exact amount and temperature of water required for your dough, these devices (except for the DOX 30) ensure your recipes turn out perfectly every time.
With a digital display showing the precise water temperature, you have complete control over your dough mixing process.

Our water meters and mixers connect directly to your main water supply, hot water, and water cooler. Choose your program, and the device calculates the perfect water quantity and temperature for your recipe.
The mixed water is precisely controlled using a thermostatic button, ensuring optimal results.

Key features

Electronic Control: Simple and intuitive operation.

Composite Structure: Durable with 4-5mm thickness.
Temperature and Flow Management

Dual Layer Stainless Steel Filter: Ensures clean, pure water.
Backflow Valve: Prevents contamination.

Remote Pump Control: Easily manage water flow with a power plug.

Stainless Steel Delivering Pipe: Robust and hygienic.

Complete Kit: Includes a goose neck pipe, 2.5m pipe, and wall-mount bracket.

Digital Keyboard: Create or load settings, and control water output with ease.

Power Supply: 1Ph, 208-240V, 50-60Hz on standard models.
DOX 30

Precision Display: Shows water temperature and quantity to the nearest 0.1°C.

bongard mixing doseur-melangeur-domix-30

Advanced Features:

  • Similar to DOX 30 with additional temperature adjustment via a thermostatic button.
    DOMIX 30 Capabilities

Water Output:

  • 15 to 25 l/min at 1 bar and 20°C
  • 35 to 55 l/min at 5 bars and 20°C

Technical characteristics

MODEL : DOX and DOMIX by Bongard

REQUIRED WATER PRESSURE (bar)

  • DOX 30 : 0.5-5
  • DOMIX 30 : 1-5

NET WEIGHT (kg)

  • DOX 30 : 8 kg
  • DOMIX 30 : 9 kg
  • Metering function
  • Mixing function (DOMIX 30)
  • Cold water inlet
  • Hot water inlet (DOMIX 30)
