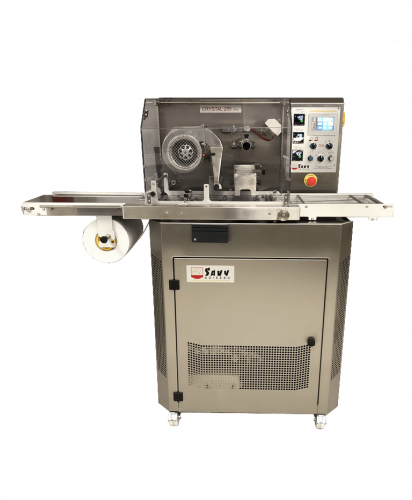

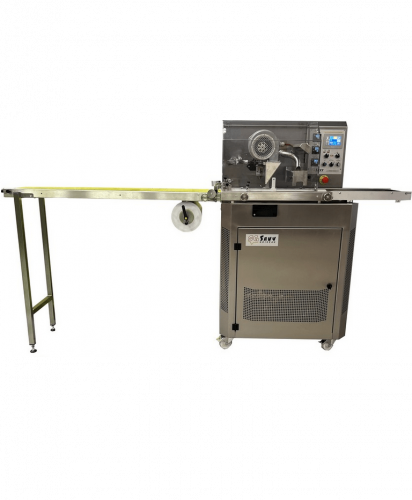

THE COATING MACHINES - CRYSTAL RS3 & RS4

CRYSTAL, the enrobing machine with the exclusive "TCR", a Savy Goiseau technology

CRYSTAL enrobing machines are equipped with the exclusive TCR continuous tempering process.

The chocolate is continuously heated and therefore decrystallized before a new curve is applied, enabling you to work for hours on end with a smooth, flowing coating.

In just 20 minutes, CRYSTALs are ready for continuous operation.

CONVEYORS: lg 800 mm outlet or CHOCOPLAK

Option(s): – Heated vibrating table – Voltage: 230 v single-phase 50 / 60 Hz

Crystal products benefits from an ISO technnology which allows an intelligent control of the cooling and heating unit, to save energy.

ADVANTAGES

  • Tempering with continuous total crystallization
  • Economic ISO mode
  • Extended dripping zone
  • Movable blower on rail
  • Touch screen control
  • Delayed start

EQUIPMENTS

  • Coating conveyor with start/stop for entry belt and exit belt
  • Partial coating system
  • Collects waste under loading grid
  • Removable infrared
  • Conveyor on/off pedal
  • Moulding pedal
  • Loading trapdoor
  • Chocolate level detection
  • Garbage truck Interior storage bin
  • Heating gun
  • TRANSMOULDERS – Pneumatic dosing head – Truffle kit
Crystal_RS4_RS3_Savy goiseau_BEME
Crystal Savy goiseau RS3 RS4_BEME

OPTIONS

  • Heated vibrating table
  • Filter grid under conveyor
  • Truffle conveyor and frame
  • TRANSMOULDER for molding with pneumatic dosing head

Technical characteristics

MODEL 185 RS3

  • Capacity : 35 kg
  • Tension : 400V tri
  • Power : 2500 W 3800 W
  • Width of belt : 180 mm
  • Width : 850 mm
  • Depth : 670 mm
  • Height : 1470 mm
  • Exit conveyor length : 800 mm
  • Weight : 205 kg

MODEL 285 RS4

  • Capacity : 35 kg
  • Tension : 400V tri
  • Power : 2500 W 4000 W
  • Width of belt : 220 mm
  • Width : 850 mm
  • Depth : 670 mm
  • Height : 1470 mm
  • Exit conveyor length : 1200 mm
  • Weight : 220 kg
